1. Accurate cutting of thin slabs;
2. Fast cutting and long life, stable performance.
3. Reduce installation cost.

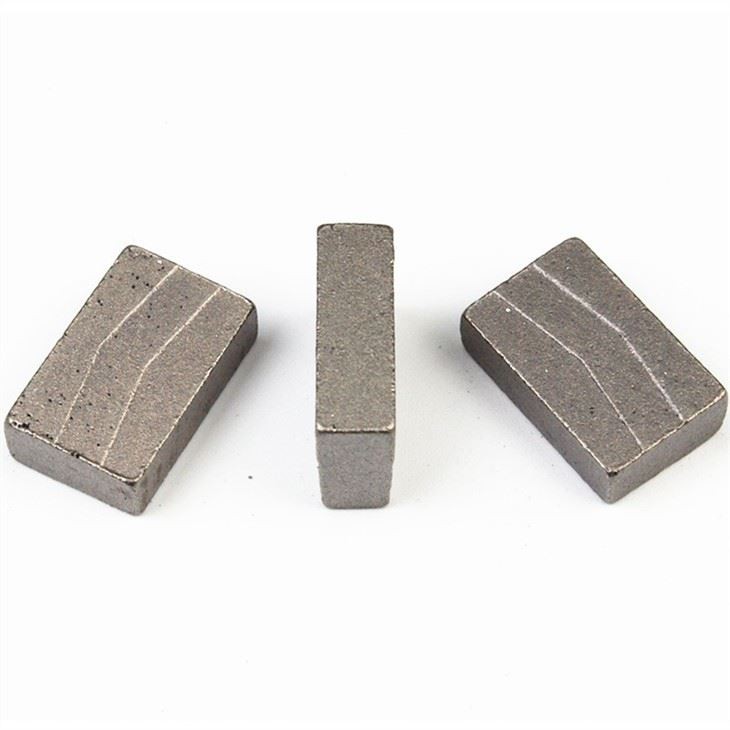

Diamond Segment for Multi Blade：
Applications:
Sandwich and Multi-layer Diamond Segments for Multiblade Block Cutter.
Available for granite, marble, travertine and sandstone block cutting;
Widely used in Italian/European Multiblade set and Chinese Multiblade Sets.
Blade Diameter mostly in 1200mm for Italian/European Multiblade and
1600/940mm or 2200-600mm and 2500-800mm for Chinese Multiblade Sets.
Specifications:
Diameter (mm) | Segment Dimension (mm) | Core thickness (mm) | Segment No. (PCS/SET) | Blade No. (PCS) | ||
Length | Width | Height | ||||
1000 | 24 | 6.0/6.6, 7.1/6.5 | 12/13/15 | 5.0/5.5 | 70 | 15-30 |
1200 | 24 | 6.5/7.5, 7.0/7.6 | 12/13/15 | 5.5/6.0 | 80 | |
1600 | 24 | 8.4/9.0 | 12/13/15 | 7.2 | 108 | |
Diameter (mm) | Segment Dimension (mm) | Core thickness (mm) | Segment No. (PCS/SET) | Blade No. (PCS) | ||
Length | Width | Height | ||||
1000 | 24 | 7.0/7.6, 8.4/9.0 | 12/13/15 | 6.0/7.2 | 88 | 6-12 |
1600 | 108 | |||||
Diameter (mm) | Segment Dimension (mm) | Core thickness (mm) | Segment No. (PCS/SET) | Blade No. (PCS) | ||
Length | Width | Height | ||||
530 | 24 | 7.5/8.1, 8.4/9.0 | 12/13/15 | 6.5/ 7.2 | 54 | 3-6 |
740 | 84 | |||||
950 | 88 | |||||
1200 | 92 | |||||
1400 | 96 | |||||
1600 | 108 | |||||
